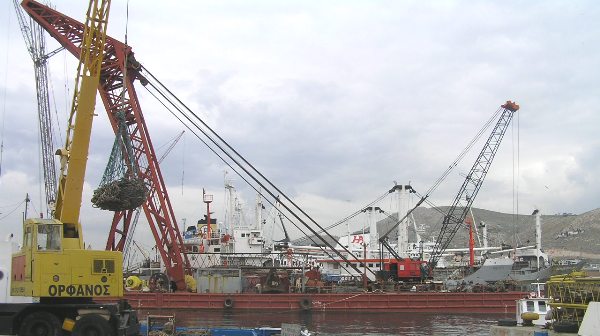

Barge - Floating Crane

Built:                          1975 in Greece by D.C. Vernicos, Perama, Greece
Dimensions:                56m x 19m x 3.8m draft
GRT/NRT:                 1147 / 344
Displacement:            2200 tons (max)
DWT:                         750 tons
                                 1450 TONS (lightship)
Freeboard:                 1042mm in summer
Class:                  RINA –C Pontoon crane
Flag:                           Cyprus
Last DD:                    March 2008
Last SS:                      March 2008

Lifting equipment:     1 x Sheerleg content with a lifting capacity of 350 tons currently (can be increased upto 400 tons)
One mobile crawler crane ‘American Hoist’, 900 series, model 9270 of 136 tons

Machinery:                 3 x 250kva each + 1 x 70kva

Deck equipment:      Anchor windlass:  2 x Pellegrini Salp 38
                               Anchor & chains:  2 x 6200lbs anchor with 1½” chain
Winches:  5 x hydraulic Hagglunds 30ton pull with drum carrying 1200 feet of 1 5/8” wire rope & appropriate anchors

Accommodation:        Master cabin with 1-2 bunks
                                   One man:        2 – 2 bunks
                                   Two man:        5 – 10 bunks
                                   Four man:       2 – 8 bunks
                                   Eight man:      1 – 8 bunks
                                   Total of 30 persons including crew which may be increased upto 41/45 persons, if sleeping containers x 8/10 persons are installed on deck.  Galley & messroom can accommodate up to 50 persons
Tank capacities:          Fuel oil:           197.60m³ in two tanks
                                   Fresh water:    131.60m³ in two tanks
                                   Ballast:            659.24m³ in six tanks
Electronic equipment: GMDSS A1, EPIRB x 1, VHF DSC x 1, VHF GMDSS x 2, SART x 2
Pumps & transfer
Rates:                         Fuel oil:           2 x 44GPM each
                                   Ballast:            2 x 8809GPM each – 60’ head
                                   Fire:                1 x 308 GPM each – 60’ head

Comments : Whilst dry-docked:  vessel was re-classed, had new accommodations as well as bathrooms installed.  She also had about 70tons of steel replaced.  All generators and cranes were overhauled.
Lying: Greece

SEE MORE PICTURE HERE

REF : PONTON03
